Laser Measurent Guide
Built for Your Laser
No two laser setups are exactly the same. Even machines with the same model and power can have dimensional differences as manufacturers make ongoing design changes.
Your Tico Laser enclosure is built to fit your specific machine, so we just need a few details from you to make sure everything is sized and positioned correctly.

Laser Measurements

Use the measurement guide below and enter all dimensions in millimeters.

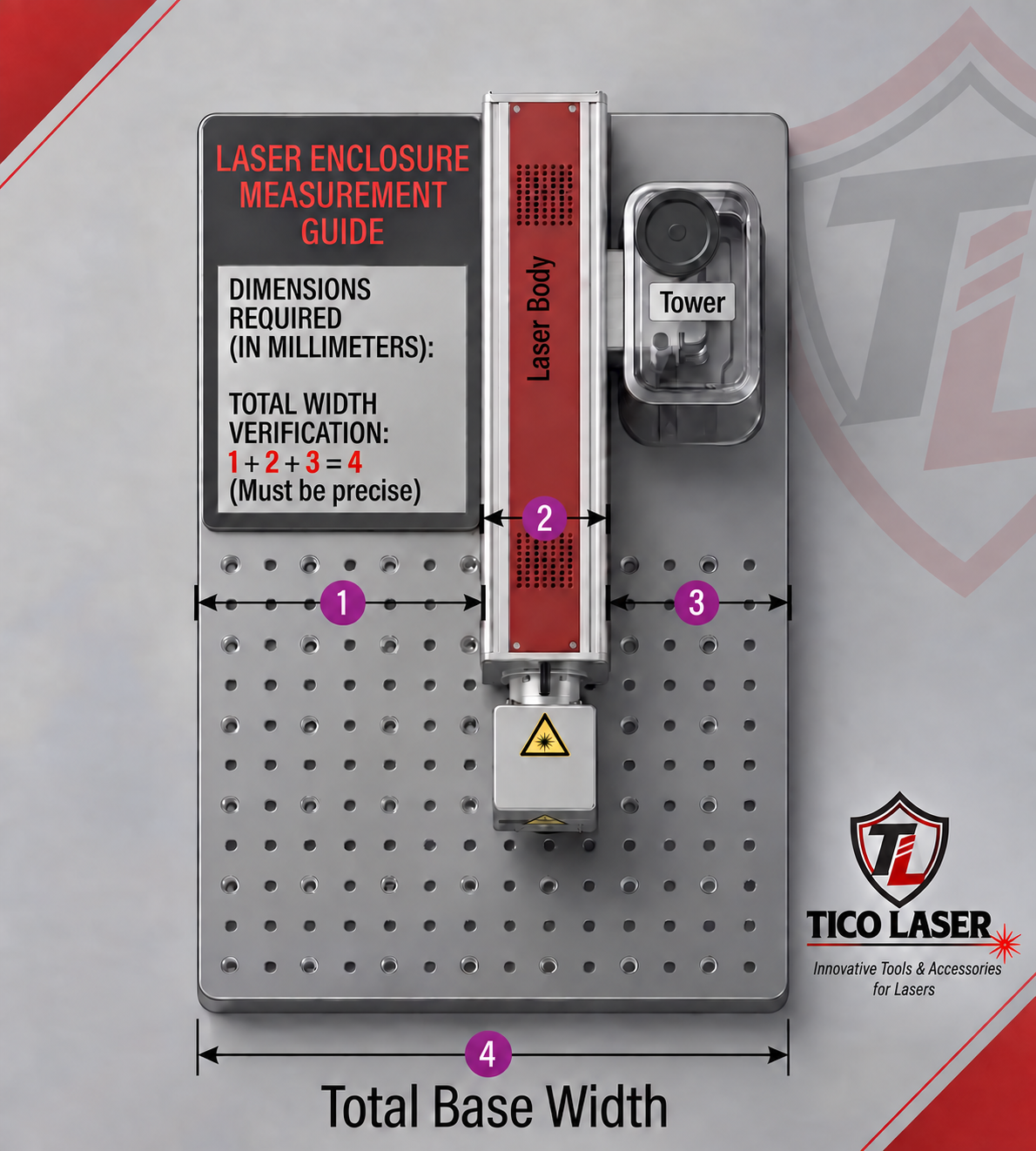

Tico Laser Enclosure Measurement Guide
Click the image to enlarge
Measurement 1
Left edge to laser body
Measurement 2
Laser body width
Measurement 3
Laser body to right edge
Measurement 4
Total base width

Enclosure Setup Details

Please provide your extraction port size, tower location, and any extra notes.

Extraction Port Size
Select the extraction port size for your enclosure
Important: Ports up to 4" are located in the rear panel. Larger ports will need to be located in a side panel.
Tower Location
Where is your laser tower located?
Additional Notes
Anything else we should know about your laser setup?
One More Helpful Step
Please email us a clear photo of your complete laser setup at orders@ticolaser.com . Including your order number in the subject line will help us match the photo to your enclosure order.
